Reverse Engineering MuseScore's MuseSampler Library

MuseScore Studio 4 on Void Linux (and other non-systemd distributions) fails to initialize its audio sampling engine, MuseSampler, with the following error:

MuseSamplerLibHandler::init | Could not init lib
MuseSamplerResolver::init | Could not init MuseSampler: /home/<username>/.local/share/MuseSampler/lib/libMuseSamplerCoreLib.so, version: 0.105.1

MuseScore launches and the UI works fine, but all MuseSounds instruments are unavailable. The same AppImage with the same MuseSounds installation works perfectly on Fedora Linux. This post documents the full investigation, including reverse engineering the closed-source libMuseSamplerCoreLib.so, and the fix.

Testing Environment

Void Linux (glibc), runit init
Artix Linux, OpenRC init
Fedora Linux, systemd init

Initial Debugging

Ruling Out Missing Dependencies

The first suspicion was missing shared libraries. Running ldd on the sampler library showed all dependencies resolving cleanly with no not found entries. The system was running glibc, not musl, so libc compatibility was not the issue.

Tracing Runtime Behavior

Since ldd was clean, the failure had to be happening during runtime initialization. Extracting the AppImage into a squashfs and running strace on the binary revealed the library was opening successfully (returning a valid file descriptor), but something during init was causing it to fail.

symbol lookup error: /home/<username>/.local/share/MuseSampler/lib/libMuseSamplerCoreLib.so:
undefined symbol: _ZN3DRM9AntiDebug24scheduleThreadTimedCrashEv

Demangled, this is DRM::AntiDebug::scheduleThreadTimedCrash() - a DRM callback that the sampler library expects the host binary to export. However, this error appeared on both the non-systemd operating systems and the working Fedora system, making it a red herring. The dynamic library handles this missing symbol gracefully.

Reverse Engineering with Ghidra

Process Name Whitelist

Reverse engineering libMuseSamplerCoreLib.so in Ghidra revealed the ms_init function. Near the top of the function is an early-exit check:

  cVar2 = FUN_00406510();
  if (cVar2 == '\0') {
    return 0xffffffff;
  }

Decompiling FUN_00406510 revealed a process name whitelist. The function reads the executable path (via /proc/self/exe or argv[0]), extracts the basename after the last /, and checks it against three strings:

“MuseScore-4”
“MuseScore-5”
“mscore”

The AppImage binary is named mscore4portable, which matches the last string. This seems to be a check to ensure the dynamic library is only initialized from within a legitimate MuseScore binary.

Instrument Folder Validation

Continuing deeper into ms_init, the next significant check was FUN_00405790. This function calls getenv("MUSESAMPLER_INSTRUMENT_FOLDER") and, if set, validates the path. If not set, it calls FUN_00405e40, which opens and parses the config file at ~/.local/share/MuseSampler/.config to find the instrument folder path. In this case, the config file contained: /home/<username>/Muse Sounds

Both code paths ultimately call FUN_00328cc0 to validate the instrument folder. Inside that function, it verifies the existence of a .instruments file inside the sounds folder, then calls FUN_00416390 which performs a machine fingerprint comparison.

Reverse Engineering the Fingerprint Check

FUN_00416390 is the core validator. Its logic:

Verifies <instrument_folder>/.instruments exists
Calls FUN_0040d800 to compute a machine-specific fingerprint
Base64-encodes that fingerprint:

  *(char *)((long)puVar8 + sVar14) =
       "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/"
       [iVar5 >> ((char)uVar12 - 6U & 0x1f) & 0x3f];

Reads a stored fingerprint from .instruments via a separate lookup function
Compares the two with bcmp - if they don’t match, init fails

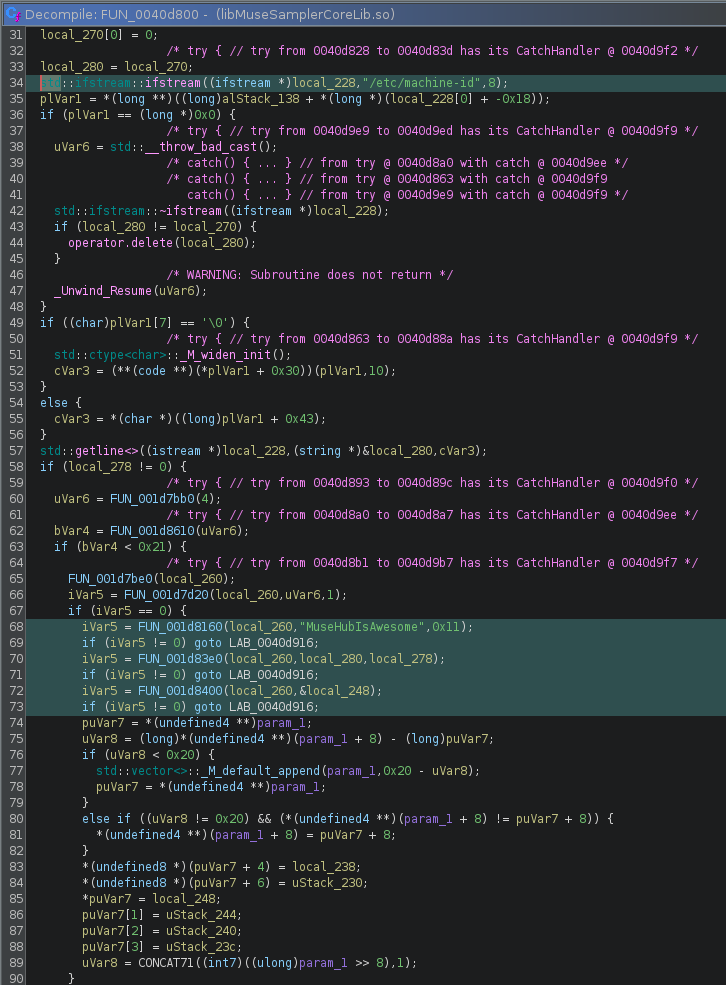

Decompiling FUN_0040d800 revealed exactly how the fingerprint is generated:

Decompiled fingerprint check

std::ifstream::ifstream((ifstream *)local_228,"/etc/machine-id",8);
  // ...
  if (iVar5 == 0) {
    iVar5 = FUN_001d8160(local_260,"MuseHubIsAwesome",0x11); // Sets HMAC key
    if (iVar5 != 0) goto LAB_0040d916;
    iVar5 = FUN_001d83e0(local_260,local_280,local_278); // Processes machine-id
    if (iVar5 != 0) goto LAB_0040d916;
    iVar5 = FUN_001d8400(local_260,&local_248); // Produces 32-bype output
    if (iVar5 != 0) goto LAB_0040d916;
  }

The function reads /etc/machine-id, runs it through a keyed hash function using the hardcoded key "MuseHubIsAwesome", and produces a 32-byte fingerprint. This fingerprint is base64-encoded and stored in .instruments when MuseSounds Manager downloads an instrument pack. On subsequent launches, MuseSampler recomputes the fingerprint and compares it against the stored value.

The Root Cause

There are two distinct but related problems:

Problem 1: Void Linux is missing /etc/machine-id. Void does not create /etc/machine-id by default. Its machine ID lives at /var/lib/dbus/machine-id. Since FUN_0040d800 exclusively reads /etc/machine-id, the fingerprint computation fails entirely on Void - the file simply isn’t there to read. This means MuseSounds Manager generates a bad or empty fingerprint when writing .instruments, and MuseSampler can never verify it successfully on subsequent launches.

Problem 2: .instruments contains a bad fingerprint and needs to be regenerated. Even on Artix Linux, which does have /etc/machine-id, MuseSampler still failed on a fresh install. The fix in both cases was the same: delete .instruments and re-download an instrument pack, forcing MuseSounds Manager to regenerate it with a valid fingerprint. The exact reason MuseSounds Manager generates a bad .instruments on non-systemd distros on the first run is not fully clear, but may relate to the absence of a proper logind session when MuseSounds Manager first runs.

The Fix

In order to fix this, it’s as simple as deleting the existing .instruments file, and re-download any instrument pack via MuseSounds Manager.

rm ~/Muse\ Sounds/.instruments

Non-systemd distributions and others with /etc/machine-id missing will need to create a symlink to the dbus machine ID:

sudo ln -s /var/lib/dbus/machine-id /etc/machine-id

Affected Distributions

Any Linux distribution that does not create /etc/machine-id by default will hit this issue. This includes Void Linux and potentially other non-systemd distributions.

Why Fedora Works Out of the Box

Fedora uses systemd, which writes /etc/machine-id during first boot via systemd-machine-id-setup. MuseSounds Manager can read it successfully, generates a valid fingerprint, and stores it in .instruments. MuseSampler verifies it correctly on every subsequent launch. On non-systemd distros, something about the environment during the initial MuseSounds Manager run causes it to write a bad fingerprint into .instruments. On Void the cause is clear - /etc/machine-id simply doesn’t exist. On Artix the cause is less obvious but the symptom and fix are the same.
